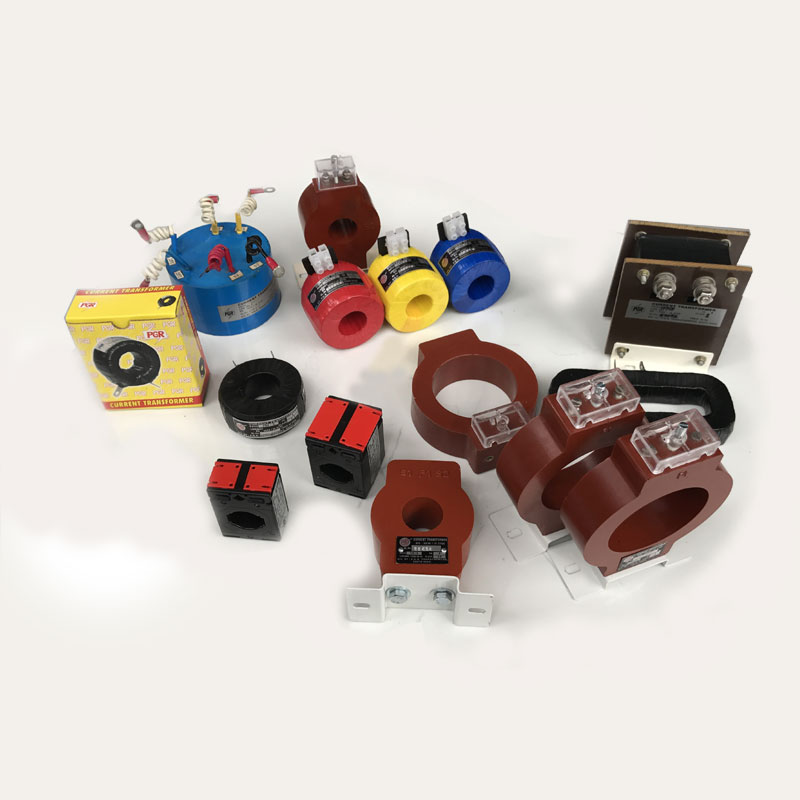

LT CURRENT TRANSFORMER (TAPE INSULATED)

LT Current Transformer (Tape Insulated)

We offer a multiple range of Current Transformers, Tape Insulated (LT) that is round in shape with no air gap and are distributed around the core. These Current Transformers are smaller and extremely capable for metering and protection.

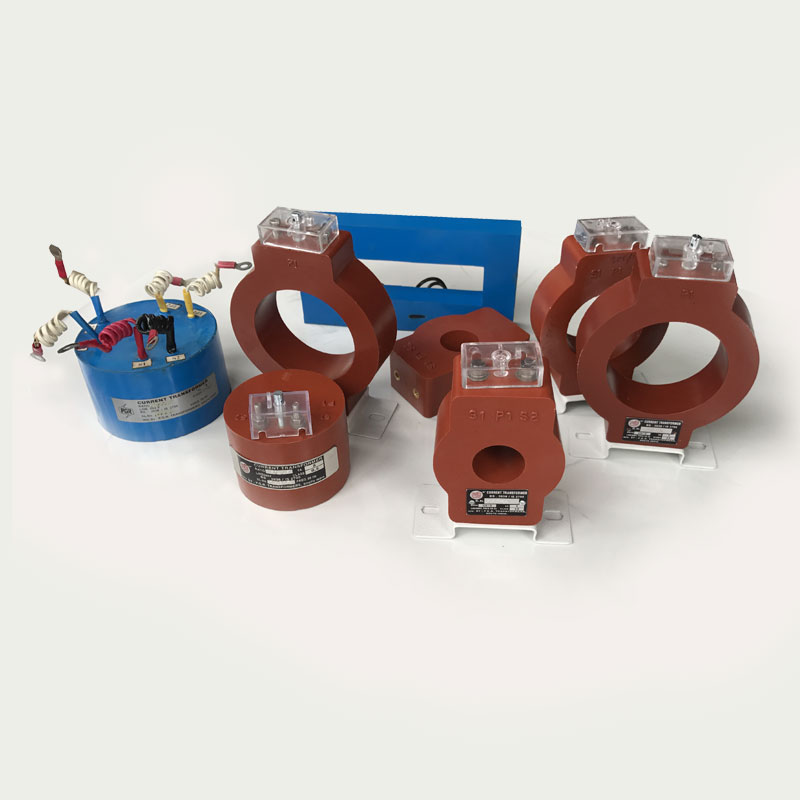

LT CURRENT TRANSFORMER (DRY TYPE)

LT Current Transformer (Dry Type)

We also offer a wide range of epoxy resin moulded, Current Transformers. They are also known as Dry Type Transformers. These are manufactured by using vacuum moulding techniques. These Dry Type Transformers are extremely capable to metering and protection.

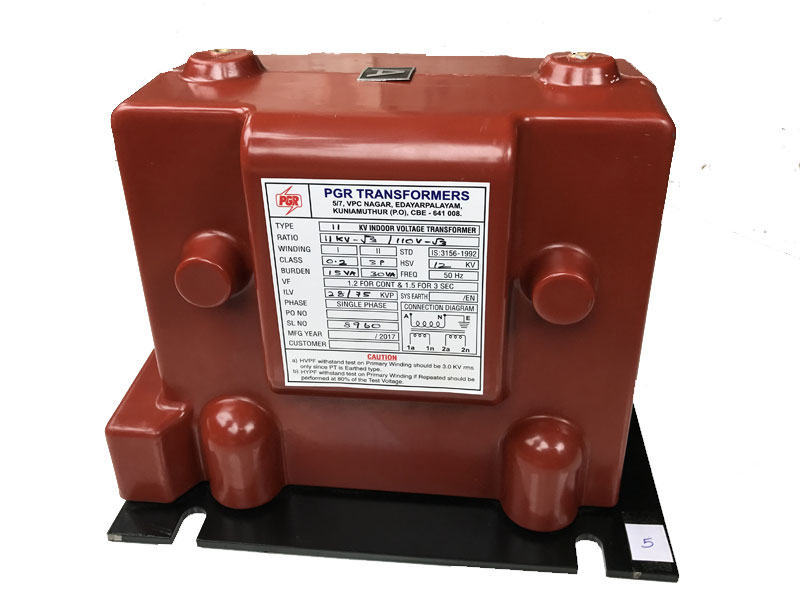

INDOOR POTENTIAL TRANSFORMER UP TO 33KV

Indoor Current Transformer Upto 33kv

11 KV Indoor Current Transformers is an instrument which is designed for offering the current flow in secondary circuit perpendicular to the amount of current flowing in its primary circuit. It is generally used for measuring the alternating current that flows through a conductor. These indoor Current Transformers can evaluate the alternating current and set up the voltage equivalent to the current, excluding heat and size. The indoor Current Transformer can be operated with every little insertion loss into the conductor current. They also give voltage isolation between the conductor and the measuring circuitry. Our range is available in torodial forms having one winding that conducts the primary current.

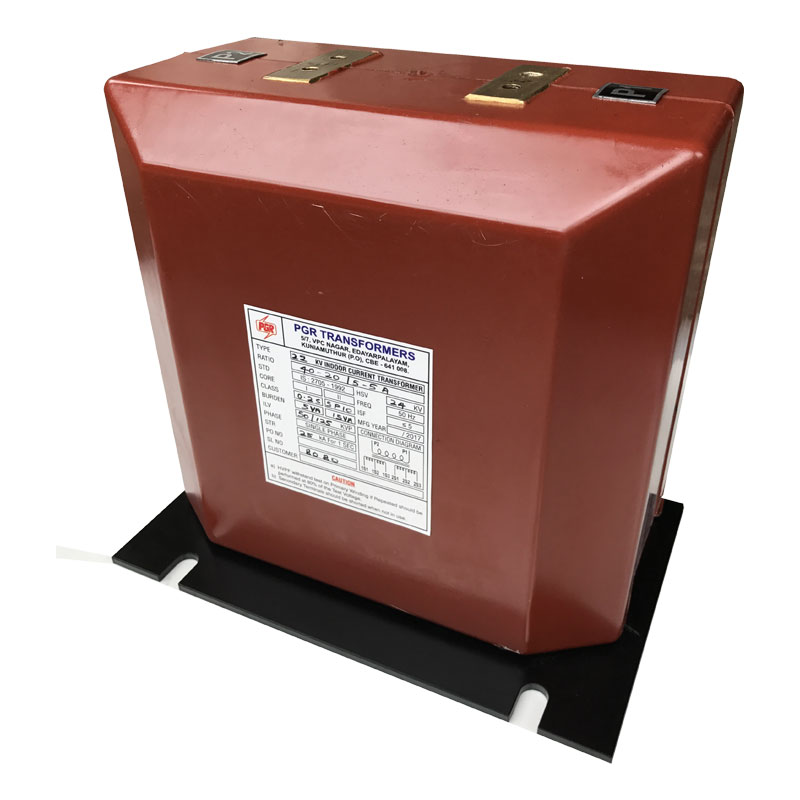

INDOOR CURRENT TRANSFORMER UP TO 33KV

Indoor Potential Transformer Upto 33kv

33KV indoor Current Transformers is an instrument which is designed for offering the current flow in secondary circuit perpendicular to the amount of current flowing in its primary circuit. It is generally used for measuring the alternating current that flows through a conductor. These indoor current Transformers can evaluate the alternating current and set up the voltage equivalent to the current, excluding heat and size. The indoor current Transformer can be operated with very little insertion loss into the conductor current. They also give voltage isolation between the conductor and the measuring circuitry. Our range is available in torodial forms having one winding that conducts the primary current.

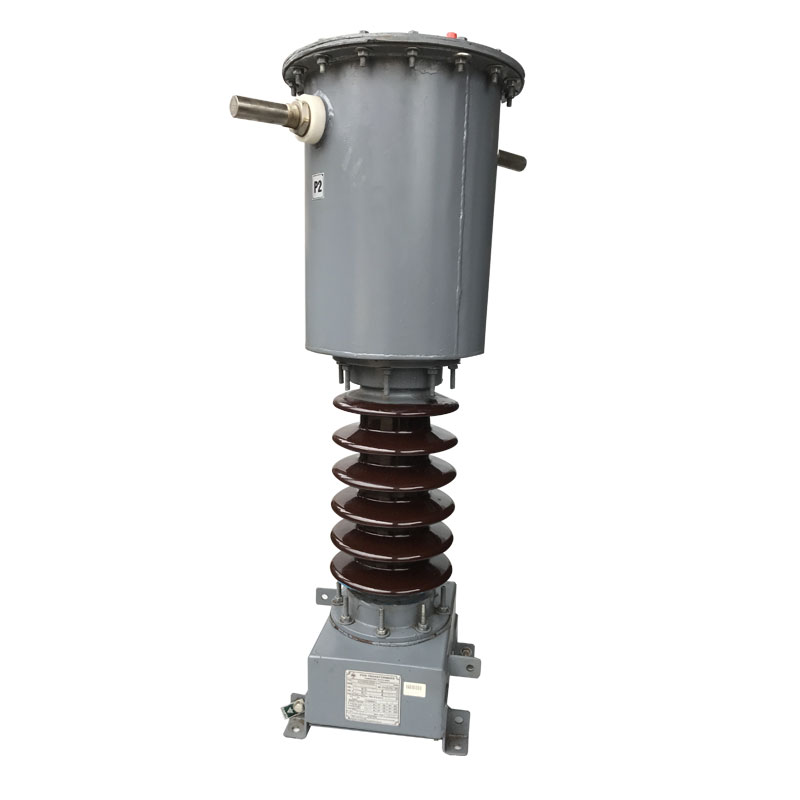

OUTDOOR CURRENT TRANSFORMER UP TO 33KV

Outdoor Current Transformer Upto 33kv

PGR Manufacture both indoor and outdoor Current Transformers up to 33 KV voltage level in ring type, window type, bar primary and wound primary of ratio ranging from 20/5A to 5000/5A for metering and protection.

The rated burden for the Current Transformer is 5VA to 30VA of accuracy class ranges from 0.2 to 0.5. The above CT's are designed to accommodate easily in any type of breakers (Cause's) as well as in outdoor substations.

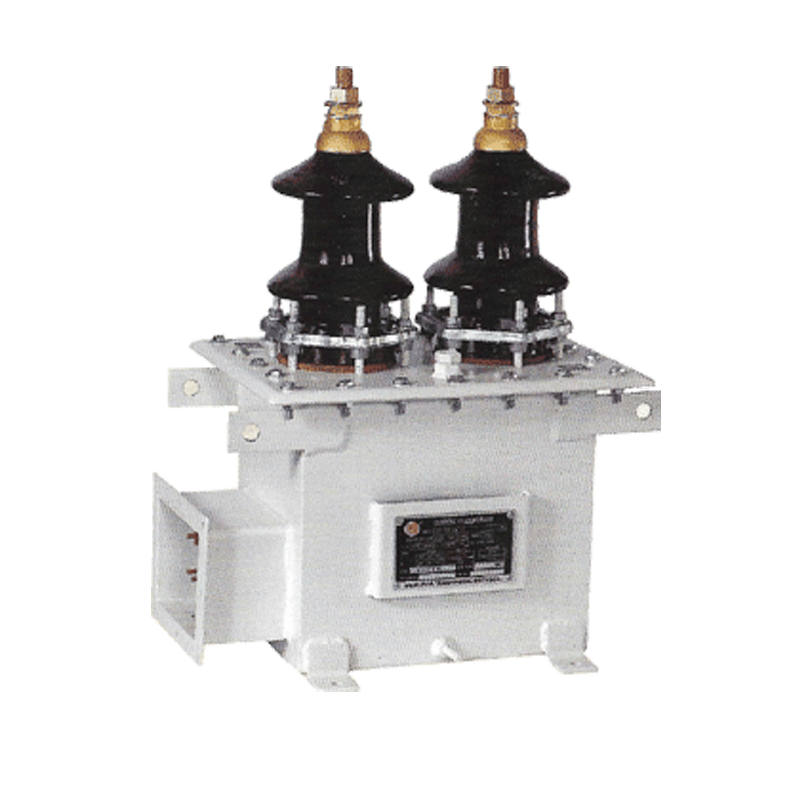

OUTOOR POTENTIAL TRANSFORMER UP TO 33KV

Outoor Potential Transformer Upto 33kv

PGR Manufacture both indoor and outdoor current Transformer up to 11 KV voltage level in ring type, window type, bar primary and wound primary of ratio ranging from 20/5A to 5000/5A for metering and protection.

The rated burden for the current Transformer is 5A 50 30VA of accuracy class ranges from 0.2 to 0.5. The above CT's are designed to accommodate easily in any type of breakers (Cause's) as well as in outdoor substations.

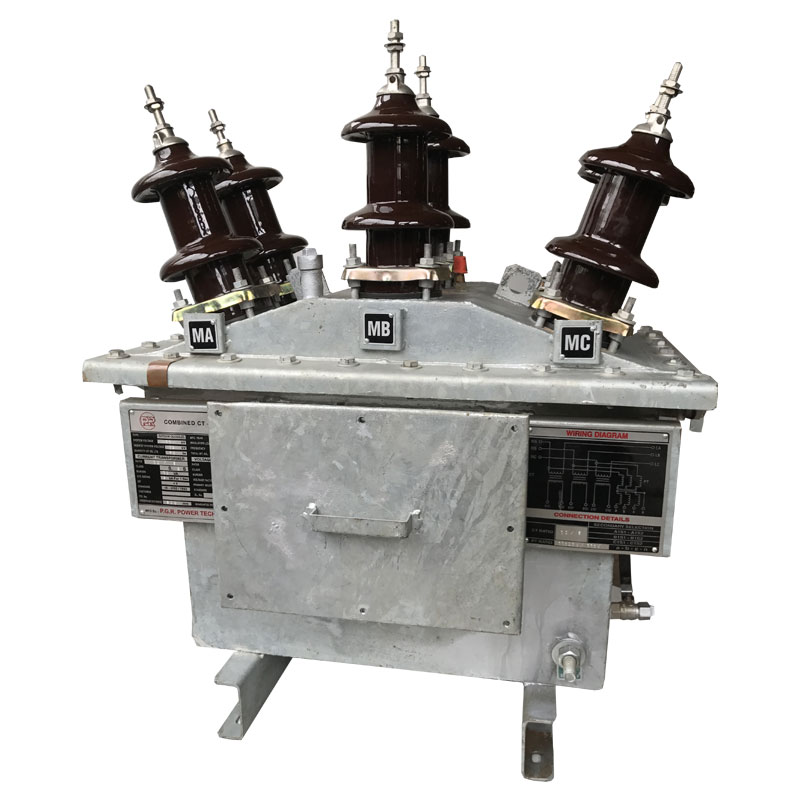

COMBINED CTPT UNIT UP TO 33KV

Combined CTPT Unit Upto 33kv

PGR provides outdoor 11KV, 22KV and 33KV metering unit in oil immersed type and Dry Type construction. The above units are used together with the energy meter to audit electrical parameters.
